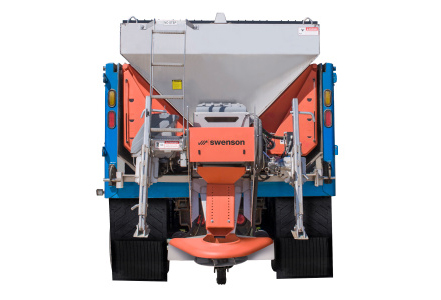

EVolution Rear Image
EVolution Smart Spreader
EVolution V Box Spreader

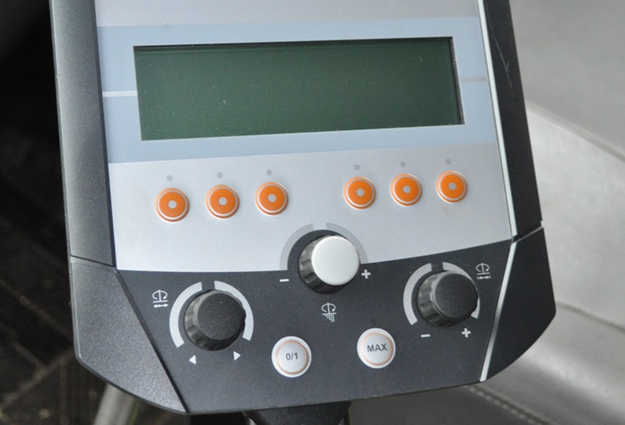

Evolution Controller

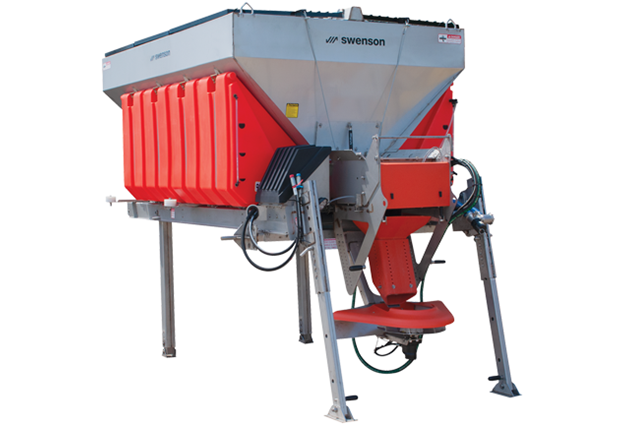

EVolution V-box Spreader

Highlights

Introducing Swenson’s EVolution, the new integrated smart spreader that combines advanced European technology and the highest quality American manufacturing to deliver precise material placement, enhanced ice melting ability, and cost reductions while improving safety for your drivers and community.

Advanced in-cab controller allows driver to choose from one to three lanes of coverage with six different spread pattern options
26 gallon per minute liquid pump supports a 70:30 ratio of granular salt to liquid pre-wet ratio - that's ratio of 65 gallons per cubic yard of salt.
Dual augers improve output while preventing material bridging.
Built in hydraulics manage the spreader, spinner disc and pre-wet system through an included premium controller.

Equipment

Size Specifications

10', 12' & 14'
Capacity

6.7, 8.1 & 11.2 cu. yd.
Drive

Hydraulic - Closed loop hydraulic system that controls conveyor, spinner disc, and pre-wet pump included.
Controller

Premium controller included
Conveyor

Chain or dual auger
Cab - Axle Length

10' 84" CA
12' 108" CT
14' 120" CT
Weight Empty

Chain: 3,840, 4,300 or 4,840 lbs.
Dual Auger: 4,010, 4,470 or 5,150 lbs.
Construction

12 gauge stainless steel
Spread Width

3 lanes with 6 different lane combinations
Safety Features

Auger safety interlock, spinner interlock
Warranty Details

1 year, 10 years on the poly idler
Accessories

Ladder, work lights, cab shields, tarp kit, vibrator

Standard Models

Part #	Description	Length	Width	Height	Capacity	Weight	Construction
79010-00001	EVolution smart spreader, drag chain, on-board hydraulics	10'	82"	56"	Hopper 6.7 cu yds Liquid 470 gal	3,750 lb	Stainless
79010-00002	EVolution smart spreader, drag chain, on-board hydraulics	12'	82"	56"	Hopper 8.1 cu yds Liquid 590 gal	4,205 lb	Stainless
79010-00003	EVolution smart spreader, drag chain, on-board hydraulics	14'	82"	56"	Hopper 11.2 cu yds Liquid 750 gal	4,741 lb	Stainless
79010-00000	EVolution smart spreader, dual auger conveyor, on-board hydraulics	10'	82"	56"	Hopper 6.7 cu yds Liquid 470 gal	4,010 lb	Stainless
79010-00005	EVolution smart spreader, dual auger conveyor, on-board hydraulics	12'	82"	56"	Hopper 8.2 cu yds Liquid 590 gal	4,470 lb	Stainless
79010-00006	EVolution smart spreader, dual auger conveyor, on-board hydraulics	14'	82"	56"	Hopper 11.2 cu yds Liquid 750 gal	5,150 lb	Stainless
