APB 2

Highlights

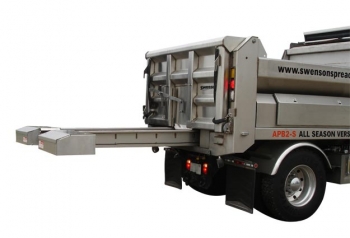

• Patented removable conveyor system allows conveyor to be easily services

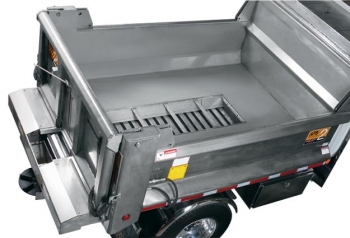

• Flat floor body handles a variety of materials and can haul pallets, barrels, etc
• 6:1 gearbox handles most types of material
• 8 tooth sprocket and 2” drive shaft provides smooth conveyance of material

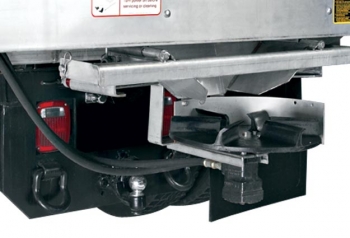

• Spinner mounts to body frame for quick installation and removal

Equipment

• Size Specifications

  Body length: 9' to 16'
  Side Height: 28" to 50"
  Tailgate Height: 38" to 58"
• Capacity

  5.0 to 16.5 cu yds
• Construction

  Stainless steel, carbon steel, Corten
• Application Rate

  4' to 40' spread pattern
• Steel Gauges

  10 gauge sides
• Safety Features

  ICC light kit, body prop
• Warranty Details

  1 year
• Options

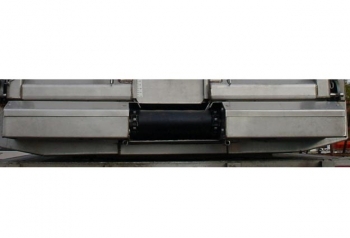

  High temp belt over chain, top screens, double acting cylinder, ladder, dual flow control valve, rear conveyor switch, vibrator
