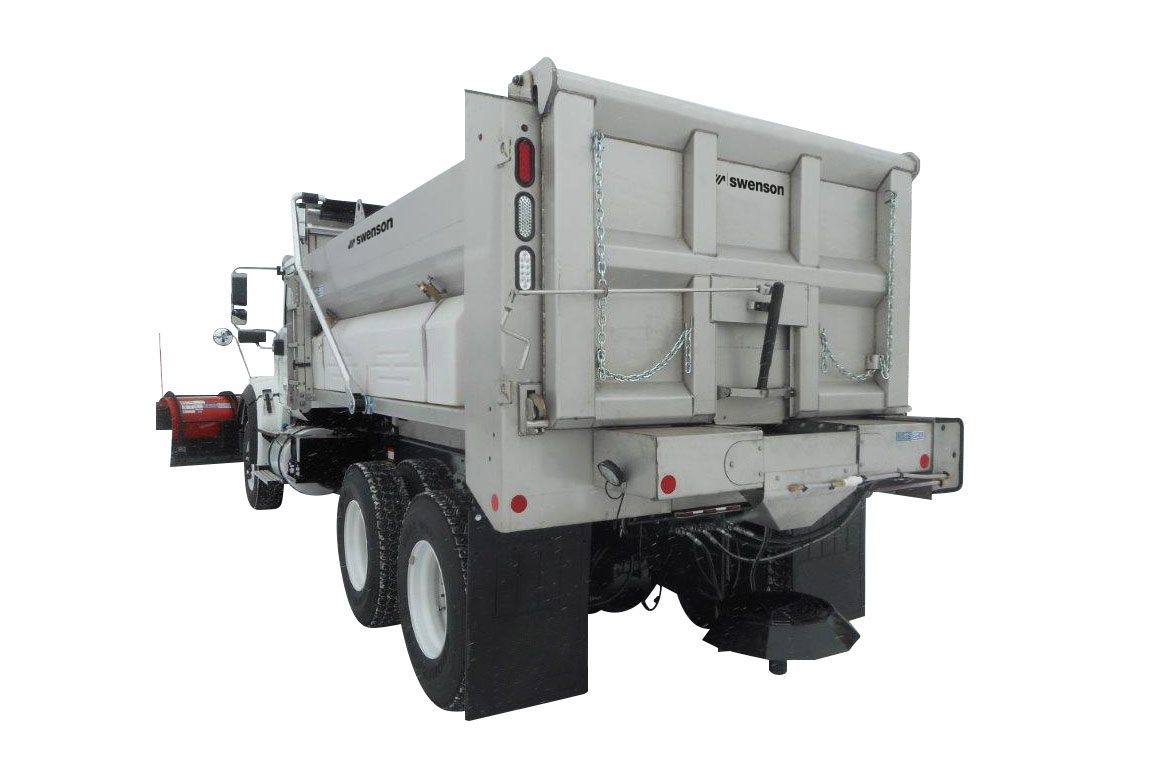

APB 2S

Highlights

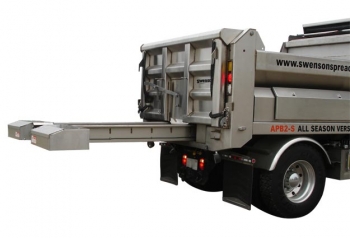

Patented removable conveyor system allows conveyor to be easily serviced
38 degree sloped sidewalls allow material to flow to conveyor without adjusting the bed
6:1 gearbox handles most types of material
8 tooth sprocket and 2” drive shaft provides smooth conveyance of material

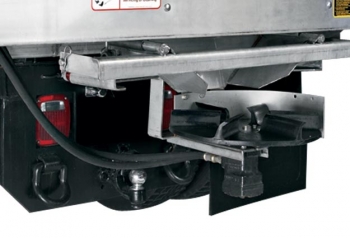

Spinner mounts to body frame for quick installation and removal
Open sides allow for optional pre-wetting tanks

Size Specifications

Body Length: 9' to 16'
Side Heights: 28.0" to 44.0"
Tailgate Heights: 38.0" to 54.0"
Capacity

5.0 to 16.0 cu yds
Construction

Stainless steel, carbon steel, Corten
Application Rate

4' to 40' spread pattern
Steel Gauges

10 gauge sides
Safety Features

ICC light kit, body prop
Warranty Details

1 year
Options

Pre-wet systems, high temp belt over chain, top screens, double acting cylinder, ladder, dual flow control valve, rear conveyor switch, vibrator

Rock Salt • Sand • Salt/Sand Mix • 3/8 Chips
