EVA Auger V-Box Spreader

Highlights

  • Designed for 20,000+ GVW Trucks

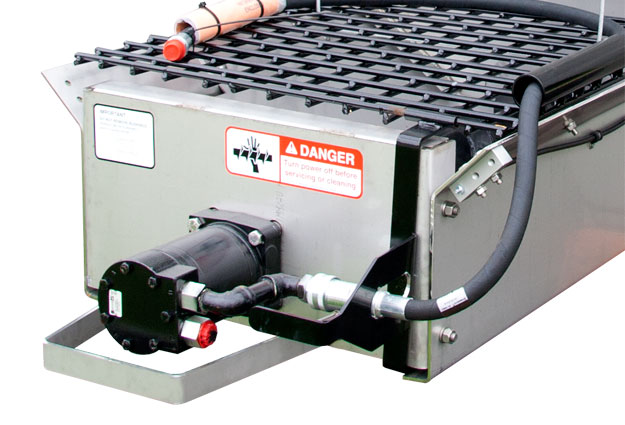

  • 2 separate hydraulic motors power the auger and spinner disk
  • Hydraulic interlock system prevents access to the auger drive system

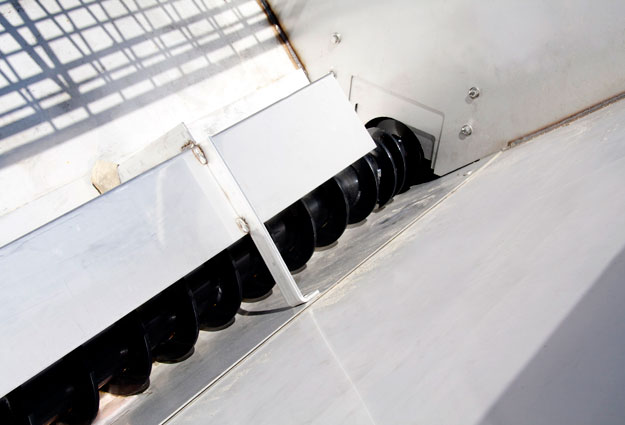

  • Standard inverted V keeps weight off the auger to optimize performance

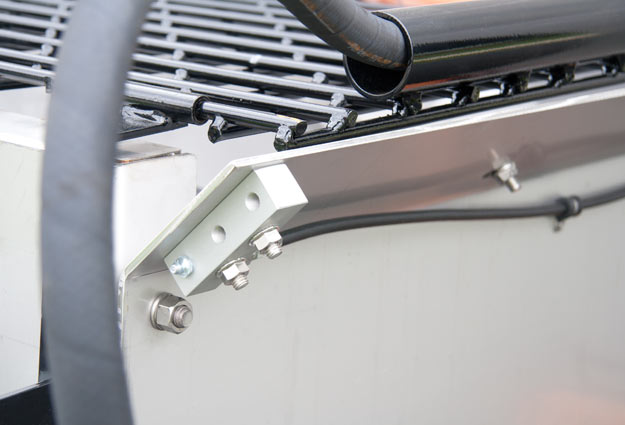

  • Remote grease extension to the rear allows for easy lubrication of the front bearing
  • Heavy duty 7” hard surfaced auger with 3 pitch lengths for even unloading

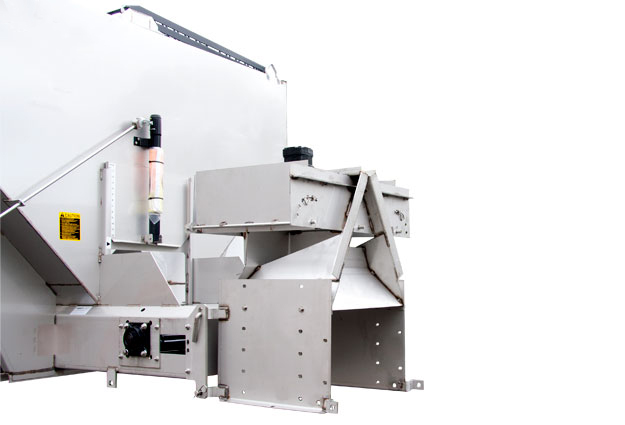

  • Swing up spinner system allows for quick unloading of material
  • Heavy duty Drop n Lock top screen breaks up material to prevent damage to the auger drive system

Equipment

  • Size Specifications
    Available in 8' to 15'
    Available in heights of 48", 54" and 60"
    84" wide
  • Capacity
    4.4 to 11.5 cu yds
  • Construction
    Stainless Steel or Carbon Steel
  • Spread Width
    4' to 40' spread pattern
  • Steel Gauges
    10 ga carbon steel hopper
    12 ga stainless steel hopper
  • Safety Features
    Hydraulic interlock, Drop n Lock top screen
  • Warranty Details
    1 year
  • Options
    Pre-wetting system, tie down kit, vibrator kit, cab shield, leg stands, observation platform, sloped front, custom paint color, rubber side shields

Materials

Sand • Salt / Sand Mix • 3/8 Chips • Magnesium Chloride • Clear Path Ice Melt • Treated Rock Salt

Common Models

Part # Description Length Width Height Capacity Construction
70010-008505 EVA-10, Hydraulic driven spreader, auger 10' 82" 54" 6.7 cu yds 2,480 lb
70010-008513 EVA-14, Hydraulic driven spreader, auger 14' 82" 54" 9.2 cu yds 3,120 lb

Options & Accessories - V-box

Part # Description Weight
00118-041-01 Tailgate latch kit 150 lb
00118-041-02 Tailgate latch kit, stainless steel 160 lb
00001-086-00 Chassis mounting kit for 8' to 11' v-boxes 36 lb
00001-085-00 Chassis mounting kit for 12' to 15' v-boxes 51 lb
00002-429-01 Slip in nylon strap kit, 4 total 34 lb
00002-429-02 Slip in nylon strap kit, 4 total, stainless steel mounting 34 lb
720000-002-01 Chain oiler, carbon tank, gravity type, 1 gallon capacity 20 lb
720000-002-02 Chain oiler, stainless steel tank, gravity type, 1 gallon capacity 20 lb
720000-002-05 Chain oiler, poly tank, gravity type, 1 gallon capacity 15 lb
00118-151-01 Spill shields, 8" overhang, 80" width, set of two (front and back) 100 lb
00118-151-02 Spill shields, 8" overhang, 80" width, stainless steel, set of two (front and back) 100 lb
00118-152-01 Spill shields, 12" overhang, 80" width, set of two (front and back) 100 lb
00118-152-02 Spill shields, 12" overhang, 80" width, stainless steel, set of two (front and back) 100 lb
00118-161-01 Full cab shield, 80" width 150 lb
00118-161-02 Full cab shield, 80" width, stainless steel 150 lb
00112-631-00 Winch for swing up spinner assembly 30 lb
00111-716-00 Winch for side swing up spinner assembly 30 lb
00002-540-00 Observation platform, carbon, not compatible with pre-wet systems 90 lb
00002-540-01 Observation platform, stainless steel, not compatible with pre-wet systems 90 lb

Options & Accessories - EV Select Liquid Tanks

Part # Description Weight
70012-230-11 EV Select 230 Gallon Tanks, sold in pairs, each has a 115 gallon capacity, fits v-boxes 4' and larger 210 lb
70012-350-11 EV Select 350 Gallon Tanks, sold in pairs, each has a 175 gallon capacity, fits v-boxes 6' and larger 280 lb
70012-470-11 EV Select 470 Gallon Tanks, sold in pairs, each has a 235 gallon capacity, fits v-boxes 8' and larger 360 lb
70012-590-11 EV Select 590 Gallon Tanks, sold in pairs, each has a 295 gallon capacity, fits v-boxes 8' and larger 440 lb
70012-590-11 EV Select 590 Gallon Tanks, sold in pairs, each has a 295 gallon capacity, fits v-boxes 10' and larger 440 lb
70012-750-11 EV Select 750 Gallon Tanks, sold in pairs, each has a 375 gallon capacity, fits v-boxes 12' and larger 520 lb
70012-850-11 EV Select 850 Gallon Tanks, sold in pairs, each has a 425 gallon capacity, fits v-boxes 14' and larger 600 lb

Options & Accessories - Light Bars

Part # Description Length Weight
00126-097-42 Light Bar with stop, turn & tail lights; low maintenance stainless steel, easily mounts with four bolts, 8' pigtail with 7-pin trailer plug and receptacle for easy hook up, sealed beam work lights 77.5" 100 lb
00126-097-46 Light bar with stop, turn, tail & flashing lights; low maintenance stainless steel, easily mounts with four bolts, 8' pigtail with 7-pin trailer plug and receptacle for easy hook up, sealed beam work lights 77.5" 100 lb
00126-097-34 Light bar with stop, turn, tail & strobe lights; low maintenance stainless steel, easily mounts with four bolts, 8' pigtail with 7-pin trailer plug and receptacle for easy hook up, sealed beam work lights 77.5" 100 lb
00126-097-38 Light bar with stop, turn, tail & back-up lights; low maintenance stainless steel, easily mounts with four bolts, 8' pigtail with 7-pin trailer plug and receptacle for easy hook up, sealed beam work lights 77.5" 100 lb

Options & Accessories - EVRGH Drive System

Part # Description Construction Weight
00118-031-50 EVRGH drive system, self-contained engine driven hydraulic package with 18 hp Kohler engine, electric solenoid valve and rear mounted dual flow valve, 12 gallon reservoir and 12 gallon fuel tank, engine/solenoi electric cab control, battery not included, requires a minimum height of 56" Carbon 550 lb
00118-031-51 EVRGH-SS drive system, self-contained engine driven hydraulic package with 18 hp Kohler engine, electric solenoid valve and rear mounted dual flow valve, 12 gallon reservoir and 12 gallon fuel tank, engine/solenoi electric cab control, battery not included, requires a minimum height of 56" Stainless Steel 550 lb

Options & Accessories - Rubber Side Shields

Part # Description Contstruction Weight
00002-171-08 Rubber side sheilds for 8' v-box, rubber belting made with two-ply polyester Carbon 88 lb
00002-171-09 Rubber side sheilds for 9' v-box, rubber belting made with two-ply polyester Carbon 99 lb
00002-171-10 Rubber side sheilds for 10' v-box, rubber belting made with two-ply polyester Carbon 110 lb
00002-171-11 Rubber side sheilds for 11' v-box, rubber belting made with two-ply polyester Carbon 121 lb
00002-171-12 Rubber side sheilds for 12' v-box, rubber belting made with two-ply polyester Carbon 132 lb
00002-171-13 Rubber side sheilds for 13' v-box, rubber belting made with two-ply polyester Carbon 143 lb
00002-171-14 Rubber side sheilds for 14' v-box, rubber belting made with two-ply polyester Carbon 154 lb
00002-171-18 Rubber side sheilds for 8' v-box, rubber belting made with two-ply polyester Stainless 88 lb
00002-171-19 Rubber side sheilds for 9' v-box, rubber belting made with two-ply polyester Stainless 99 lb
00002-171-20 Rubber side sheilds for 10' v-box, rubber belting made with two-ply polyester Stainless 110 lb
00002-171-21 Rubber side sheilds for 11' v-box, rubber belting made with two-ply polyester Stainless 121 lb
00002-171-22 Rubber side sheilds for 12' v-box, rubber belting made with two-ply polyester Stainless 132 lb
00002-171-23 Rubber side sheilds for 13' v-box, rubber belting made with two-ply polyester Stainless 143 lb
00002-171-24 Rubber side sheilds for 14' v-box, rubber belting made with two-ply polyester Stainless 154 lb

Options & Accessories - Universal Leg Stands

Part # Description Construction Weight
70400-001-01 Leg stand for 8' v-box, formed tubing storage stand system designed to be bolted directly to the v-box, forward legs fold up as vehicle backs underneath stand Carbon 1,500 lb
70400-001-02 Leg stand for 9' v-box, formed tubing storage stand system designed to be bolted directly to the v-box, forward legs fold up as vehicle backs underneath stand Carbon 1,688 lb
70400-001-03 Leg stand for 10' v-box, formed tubing storage stand system designed to be bolted directly to the v-box, forward legs fold up as vehicle backs underneath stand Carbon 1,875 lb
70400-001-04 Leg stand for 11' v-box, formed tubing storage stand system designed to be bolted directly to the v-box, forward legs fold up as vehicle backs underneath stand Carbon 2,063 lb
70400-001-05 Leg stand for 12' v-box, formed tubing storage stand system designed to be bolted directly to the v-box, forward legs fold up as vehicle backs underneath stand Carbon 2,250 lb
70400-001-06 Leg stand for 13' v-box, formed tubing storage stand system designed to be bolted directly to the v-box, forward legs fold up as vehicle backs underneath stand Carbon 2,438 lb
70400-001-07 Leg stand for 14' v-box, formed tubing storage stand system designed to be bolted directly to the v-box, forward legs fold up as vehicle backs underneath stand Carbon 2,625 lb
70400-001-08 Leg stand for 15' v-box, formed tubing storage stand system designed to be bolted directly to the v-box, forward legs fold up as vehicle backs underneath stand Carbon 2,813 lb
70400-001-09 Leg stand for 16' v-box, formed tubing storage stand system designed to be bolted directly to the v-box, forward legs fold up as vehicle backs underneath stand Carbon 3,000 lb
70400-001-10 Leg stand for 8' v-box, formed tubing storage stand system designed to be bolted directly to the v-box, forward legs fold up as vehicle backs underneath stand Stainless 1,500 lb
70400-001-11 Leg stand for 9' v-box, formed tubing storage stand system designed to be bolted directly to the v-box, forward legs fold up as vehicle backs underneath stand Stainless 1,688 lb
70400-001-12 Leg stand for 10' v-box, formed tubing storage stand system designed to be bolted directly to the v-box, forward legs fold up as vehicle backs underneath stand Stainless 1,875 lb
70400-001-13 Leg stand for 11' v-box, formed tubing storage stand system designed to be bolted directly to the v-box, forward legs fold up as vehicle backs underneath stand Stainless 2,063 lb
70400-001-14 Leg stand for 12' v-box, formed tubing storage stand system designed to be bolted directly to the v-box, forward legs fold up as vehicle backs underneath stand Stainless 2,250 lb
70400-001-15 Leg stand for 13' v-box, formed tubing storage stand system designed to be bolted directly to the v-box, forward legs fold up as vehicle backs underneath stand Stainless 2,438 lb
70400-001-16 Leg stand for 14' v-box, formed tubing storage stand system designed to be bolted directly to the v-box, forward legs fold up as vehicle backs underneath stand Stainless 2,625 lb
70400-001-17 Leg stand for 15' v-box, formed tubing storage stand system designed to be bolted directly to the v-box, forward legs fold up as vehicle backs underneath stand Stainless 2,813 lb
70400-001-18 Leg stand for 16' v-box, formed tubing storage stand system designed to be bolted directly to the v-box, forward legs fold up as vehicle backs underneath stand Stainless 3,000 lb
