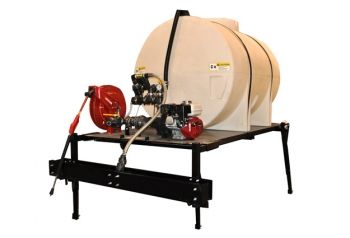

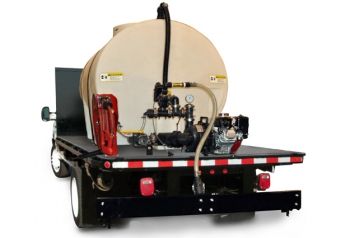

Anti-Ice System For Medium Duty Trucks

Highlights

• For medium-duty trucks Class 5+ (16,001+ lbs. GVW)
• Designed to meet the needs of government agencies and landscapers
• Ideal for pretreating parking lots, intersections, rural highways and municipal streets
• UV protected thermoplastic tanks are maintenance free

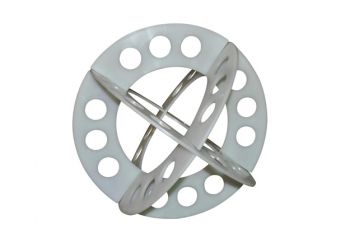

• Internal baffles keep liquid mixed at all times

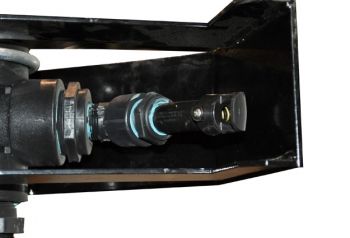

• Hydraulic liquid pump can be hooked to your hydraulic system

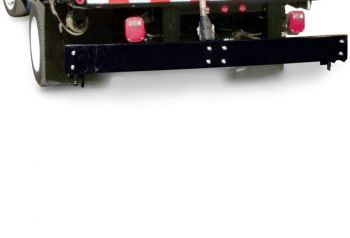

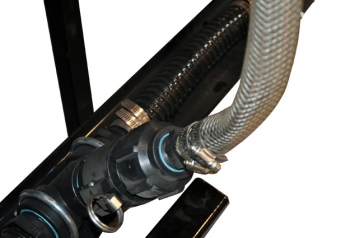

• Height-adjustable spray bar will work on various truck bed heights, includes maintenance-free stainless steel boom cover
• Available with fan spray or streamer nozzles for multiple application types
• In-line check valves reduce excessive dripping from nozzles
• Adjustable nozzles provide a uniform 10 foot spray pattern
• Rapid discharge port provides faster emptying outside of spray bar

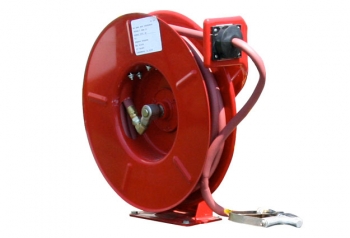

• Curbside mounted hose reel with 50 foot hose and gun allows safer sidewalk applications
• Self-storing and loading leg stands are always ready to use

Equipment

• Size Specifications

  Height: 55"
  Length: 133"
  Width: 60"
• Capacity

  535 gallons
• Weight

  Empty: 780 lbs.
  Full: 6280 lbs.
• Construction

  Thermoplastic hopper, powder-coated carbon steel frame
• Application

  1 lane; 40 gallons/lane mile @ 40 mph
• Safety Features

  Curbside hose reel
• Warranty Details

  1 year
• Options

  300 foot hose, flow meter, spray guns
