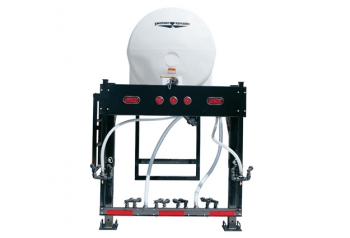

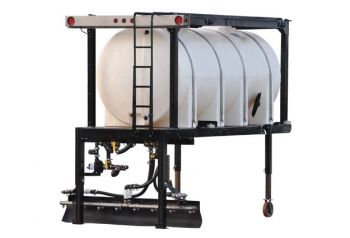

Anti-Ice Systems – Large Capacity

Highlights

• For large trucks Class 5+ (16,001+ lbs. GVW)
• Designed to meet the needs of government agencies and large scale contractors
• Ideal for pretreating highways, intersections and parking lots before a snow or ice event
• UV protected thermoplastic tanks are maintenance-free
• Internal baffles keep liquid mixed at all times

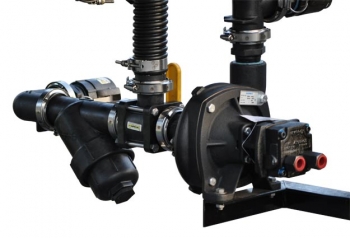

• Hydraulic liquid pump can be hooked to your hydraulic system

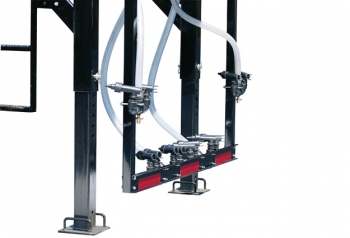

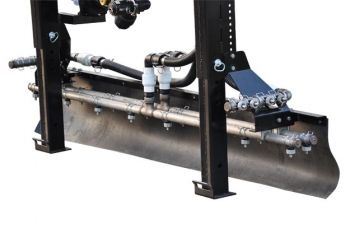

• Height-adjustable spray bar will work on various truck bed heights; includes maintenance-free stainless steel boom cover
• Available with fan spray or streamer nozzles for multiple application types
• In-line check valves reduce excessive dripping from nozzles

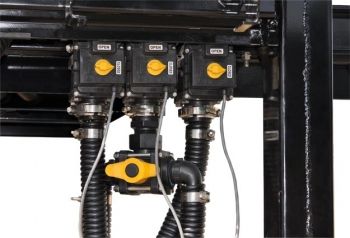

• Five ports with three-way adjustable nozzles give unlimited spray patterns and application rates
• Rapid discharge port provides faster emptying outside of spray bar
• Self-storing and loading leg stands are always ready to use
• All frame components are powder coated for a long life
• Accepts third party electric controls for use on any truck

Equipment

• Size

  6 feet wide, height adjustable spray bar
• Capacity

  1,000/1,300/1,650/1,800 gallons
• Weight

  Empty: 3,000/3,200/3,600/3,800 lbs.
  Full: 3,555/11,500/20,600/32,500 lbs.
• Construction

  Thermoplastic tank, carbon steel/stainless steel frame and leg stand
• Application Rate

  1 to 3 lanes; 70 gallons/lane mi. @ 40 mph
• Safety Features

  Integrated light bar
• Warranty Details

  1 year
• Options

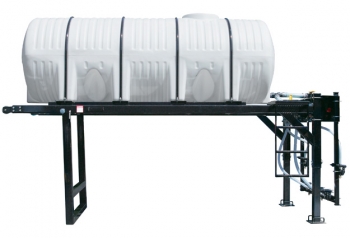

  50 foot hose w/reel, flow meter, ladder, catwalk, booms, spray guns

Materials
