LPV-SELECT Professional Series V-Box Spreaders

Highlights

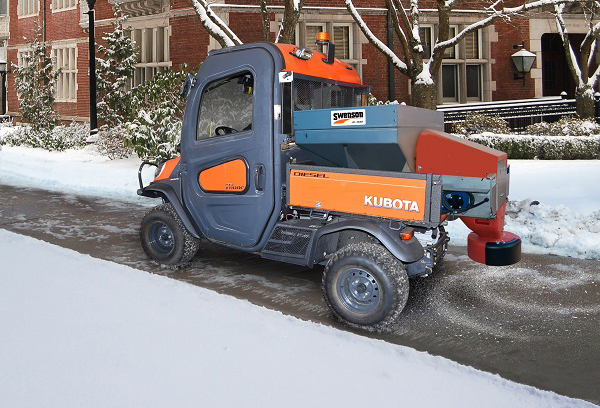

  • Low profile design works with most light pickups and UTVs.
  • Ideal for use by municipality fleets, landscapers, and other contractors.
  • Available in 3- and 5-foot hopper lengths.
  • Available in hydraulic or dual motor electric drive options, with belt over chain conveyor.
  • More maintenance-free materials provide added strength and durability to protect against harsh weather and corrosive chemicals.
  • Bolt-in replaceable floor is easy to maintain.
  • Full length rubber chain shields eliminate leaking material.
  • Second chain wiper removes residual material on the drag chain bar flights.
  • Tapered feedgate operates smoothly every time.

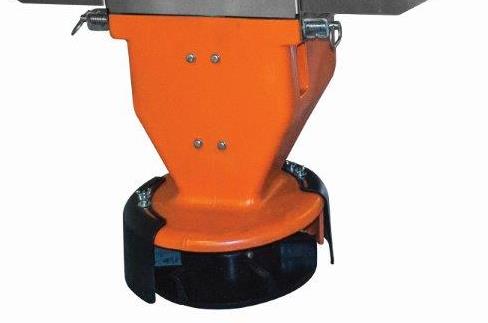

  • Light poly spinner has formed handles and quick pin connector for fast attachment and removal.
  • Coned center hub provides better balance, prevents material build up around the spinner shaft. Interrupted directional flights provides more consistent spreading.
  • Various spinner heights available to accommodate truck bed height.
  • Drop-n-Loc style sectional top screens are easier to remove and feature corner lift points for safer lifting. Recessed edges prevent interference from added accessories.
  • 10-year warranty on poly idler assembly; 1 year on spreader

Equipment

  • Size Specifications

    Length  - 3 - 8'
    Width   - 50"
    Height  - 35"

  • Capacity
    0.3 cu.yd., 0.5 cu.yd.
  • Construction

    10 gauge with 7 gauge sides/longitudinals
    12 gauge with 10 gauge sides/longitudinals
    Carbon or maintenance-free stainless steel

  • Drive
    Hydraulic
    Dual motor electric
  • Conveyor
    Drag chain
  • Disc
    14” poly
  • Spread Width
    Up to 30 feet
  • Top Screens
    Drop-n-Loc sectional carbon
  • Warranty Details
    Poly idler assembly 10 years
    Spreader 1 year
  • Options
    Tarp kit, side extensions, vibrator kit, tie down kit

Materials

Rock Salt • Sand • Salt / Sand Mix

Standard Models

Part # Description Length Width Height Capacity Construction
00004-003-0031 Low profile PV Select dual motor electric spreader, belt-over-chain conveyor 3' 37" 25" 0.3 cu yds Stainless
00004-004-0031 Low profile PV Select dual motor electric spreader, belt-over-chain conveyor 4' 37" 25" 0.4 cu yds Stainless
00004-005-0031 Low profile PV Select dual motor electric spreader, belt-over-chain conveyor 5' 37" 25" 0.5 cu yds Stainless
00004-006-0031 Low profile PV Select dual motor electric spreader, belt-over-chain conveyor 6' 37" 25" 0.6 cu yds Stainless
00004-007-0031 Low profile PV Select dual motor electric spreader, belt-over-chain conveyor 7' 37" 25" 0.7 cu yds Stainless
00004-008-0031 Low profile PV Select dual motor electric spreader, belt-over-chain conveyor 8' 37" 25 0.8 cu yds Stainless

Options & Accessories - Select Spreaders

Part # Description Weight
00129-571-14 Spinner assembly - 14" height with 14" poly disc, standard on the LPV Select
00129-571-20 Spinner assembly - 20" height with 14" poly disc, standard on the PV Select
00129-571-24 Spinner assembly - 24" height with 14" poly disc, standard on the MDV Select
00129-571-30 Spinner assembly - 30" height with 14" poly disc
04622-147-00 14" diameter poly spinner disc with six interrupted flights and coned center hub, standard on the LPV, PV and MDV Select
04627-080-01 Wireless transmitter only - for gas engine driven LPV, PV and MDV Selects
04627-081-00 Wireless controller - for gas engine driven LPV, PV and MDV Selects
04627-008-00 Wired controller - for dual motor electric drive LPV, PV and MDV Selects
00002-563-00 Tarp kit for 6' PV Select, includes hooks
00001-919-00 Tarp kit for 8' PV Select, includes hooks
00002-294-08 Tarp kit for 8' MDV Select, includes hooks
00002-294-09 Tarp kit for 9' MDV Select, inlcudes hooks
00002-294-10 Tarp kit for 10' MDV Select, inlcudes hooks
04034-035-00 Tarp only for 6' PV Select
04034-036-00 Tarp only for 8' PV Select
04034-030-00 Tarp only for 8' MDV Select
04034-031-00 Tarp only for 9' MDV Select
04034-032-00 Tarp only for 10' MDV Select
