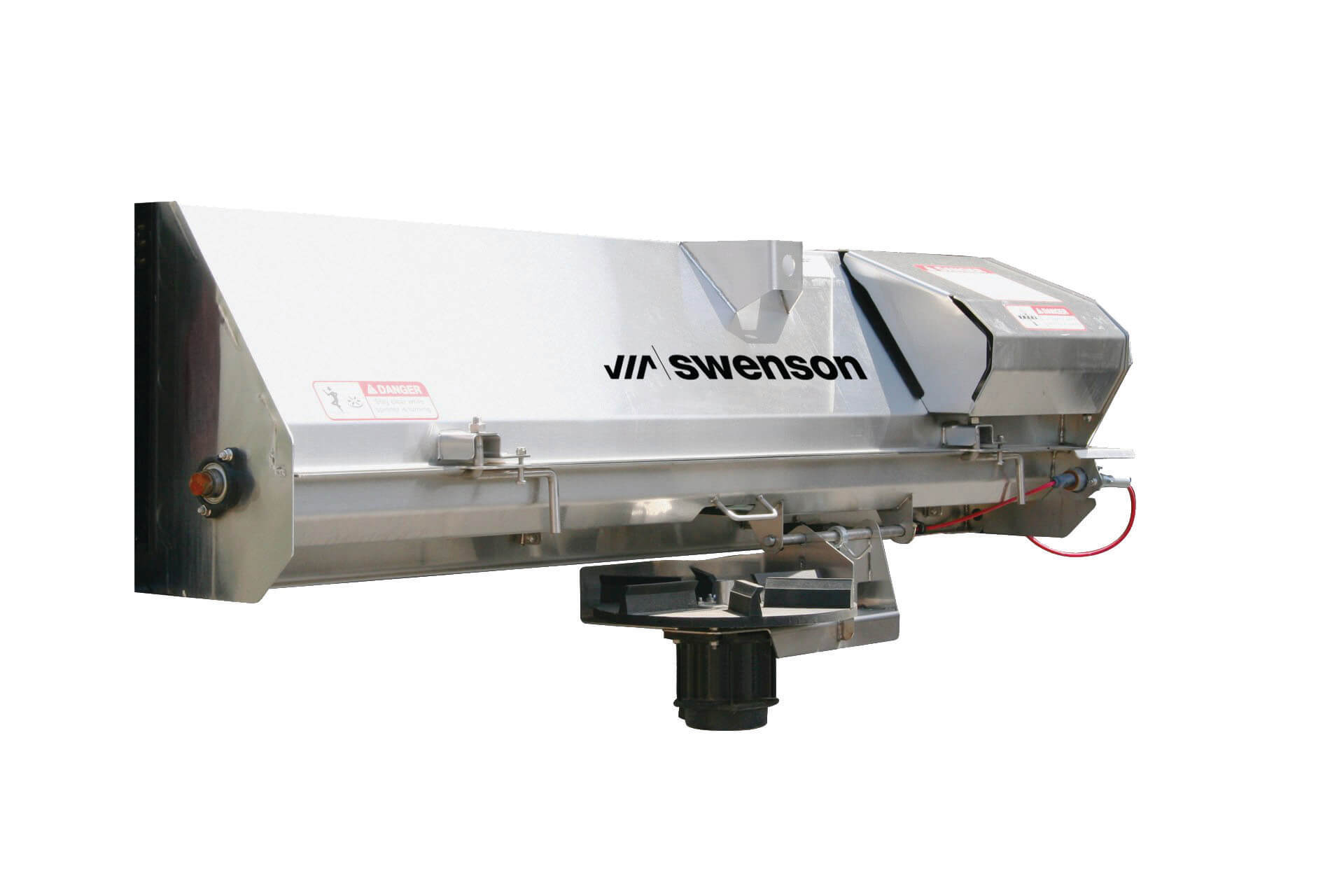

Replaceable Tailgate Spreaders

Highlights

  • Designed to replace existing dump body tailgates during winter months for de-icing operations
  • Separate electric motors for the auger and spinner provide independent control of each function
  • Single 6" auger with continuous fliting and drop port located 4-1/2" from left end of trough, spreading mostly to the side of the vehicle; center drop port also available

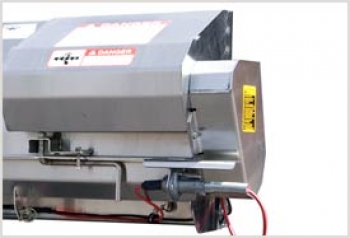

  • Electric safety interlock system disables auger and agitator during clean out and maintenance
  • Chain and sprocket drive system reduces auger speed
  • 18" spinner disk

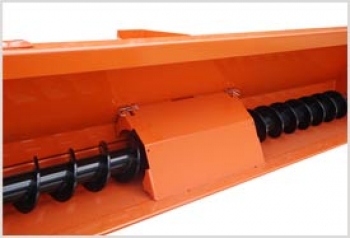

  • Anti-flow plate located over drop port prevents material free flow while auger is not turning
  • Hinged bottom door allows for easy clean out or blockage removal
  • Mounting kit includes 1-1/4" hinge pins to fit various makes of dump bodies

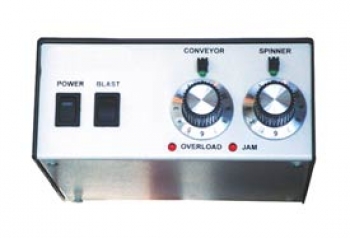

  • Dual speed variable controller

Equipment

  • Size Specifications
    88" or 96" wide x 23" tall x 16.5" deep
  • Weight
    396 lbs.
  • Construction
    10 ga. corrosion-resistant stainless steel or painted carbon steel
  • Spinner
    18" disk
  • Auger
    6"
  • Application
    4' to 40' spread pattern
  • Safety Features
    Electric Interlock System
  • Warranty Details
    1 year
  • Options
    Center drop, left drop, vibrator kit

Materials

Rock Salt • Sand • Salt / Sand Mix • Magnesium Chloride • Treated Rock Salt • Clear Path Ice Melt

Standard Models

Part # Description Width Drive Matieral Weight Construction
00002-570-01 Replacaeable tailgate spreader with 6" auger with continuous flighting, left hand drop port 78-84" 1/2 hp electric auger motor
1/2 hp sealed electric spinner motor
Salt 396 lb Carbon
00002-570-02 Replacaeable tailgate spreader with 6" auger with continuous flighting, left hand drop port 78-84" 1/2 hp electric auger motor
1/2 hp sealed electric spinner motor
Salt 396 lb Stainless
00002-570-03 Replacaeable tailgate spreader with 6" auger with continuous flighting, center drop port 78-84" 1/2 hp electric auger motor
1/2 hp sealed electric spinner motor
Salt 396 lb Carbon
00002-570-04 Replacaeable tailgate spreader with 6" auger with continuous flighting, center drop port 78-84" 1/2 hp electric auger motor
1/2 hp sealed electric spinner motor
Salt 396 lb Stainless
00002-570-05 Replacaeable tailgate spreader with 6" auger with continuous flighting, left hand drop port 84-90" 1/2 hp electric auger motor
1/2 hp sealed electric spinner motor
Salt 396 lb Carbon
00002-570-06 Replacaeable tailgate spreader with 6" auger with continuous flighting, left hand drop port 84-90" 1/2 hp electric auger motor
1/2 hp sealed electric spinner motor
Salt 396 lb Stainless
00002-570-07 Replacaeable tailgate spreader with 6" auger with continuous flighting, center drop port 84-90" 1/2 hp electric auger motor
1/2 hp sealed electric spinner motor
Salt 396 lb Carbon
00002-570-08 Replacaeable tailgate spreader with 6" auger with continuous flighting, center drop port 84-90" 1/2 hp electric auger motor
1/2 hp sealed electric spinner motor
Salt 396 lb Stainless

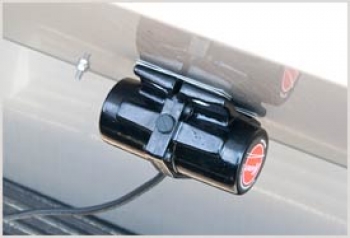

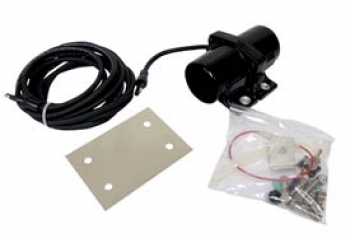

00002-462-00 Sure flow vibrator kit mounts directly to spreader, ensures steady flow of any matieral in any enviroment 9 lb
