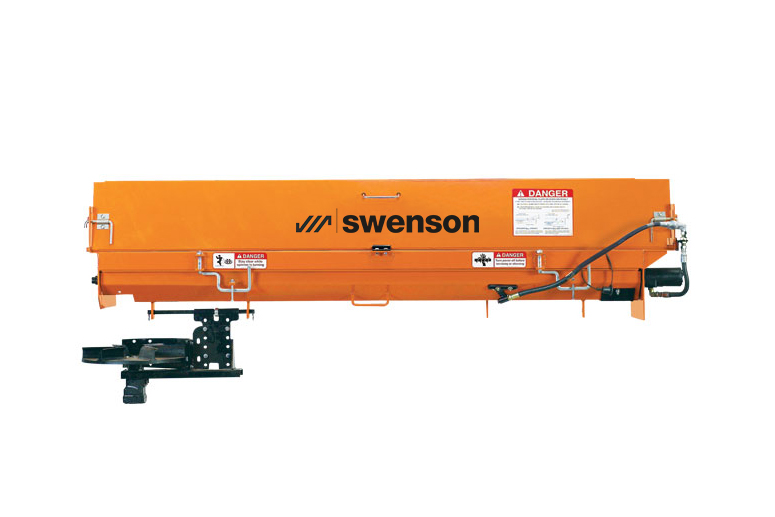

Under Tailgate Spreaders – SB Series

Highlights

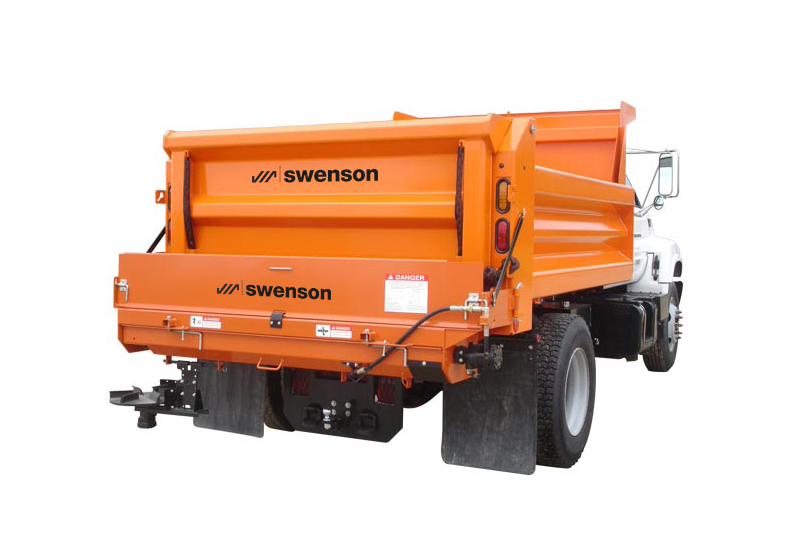

• Designed for 20,000+GVW trucks with ground clearance greater than 44”
• Rugged 6 in. or 9 in. auger with continuous flighting to discharge at the extreme left or right end

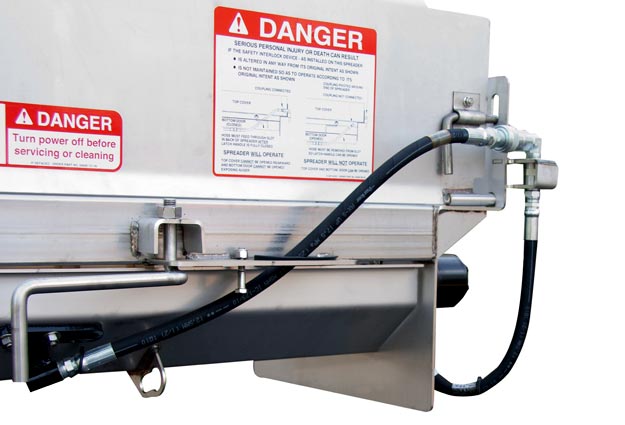

• Hydraulic safety interlock system disables auger when opening bottom door
• Hinged bottom door makes clean out and blockage removal easy
• Includes 24” berm chute for shoulder applications
• Spinner stays parallel to the road even when the dump body is raised
• Material drop port is located on extreme left and right end for discharge on either side.

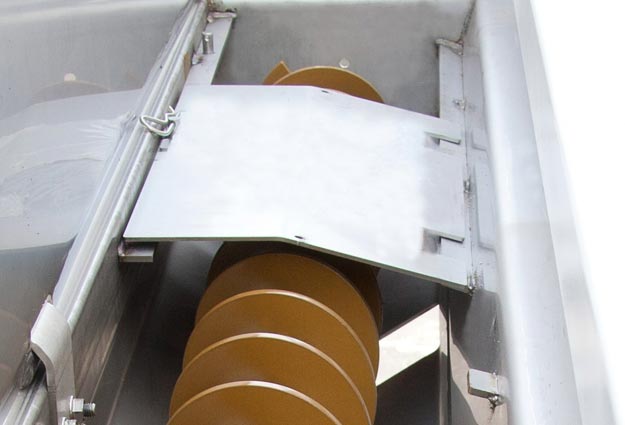

• Anti-flow plates save material by preventing free-flowing of material
• Direct drive auger motor for higher performance and lower maintenance
• Separate hydraulic motors for auger and spinner allow for better spreading control

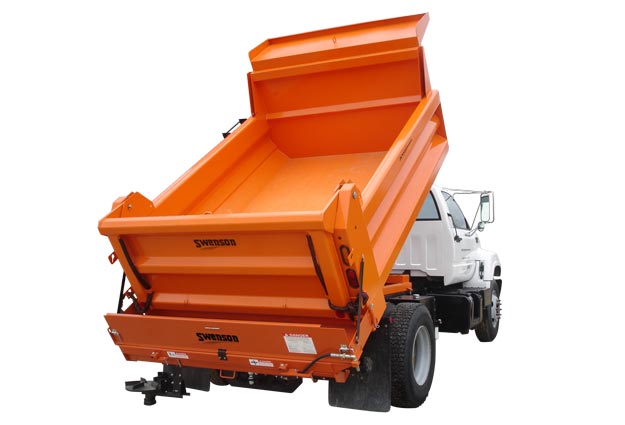

• Unit mounts below dump body floor to allow normal dump body operations when spreader is not in use

Equipment

• Size Specifications

  96" wide x 19" tall x 18" deep
  SBD-6 – 540 lbs
  SBD-9 – 600lbs

• Capacity

  N/A
• Construction

  Corrosion Resistant Stainless or Painted Carbon Steel
• Flow Rate

  4' to 40' spread pattern, 21 lbs/revolution
• Steel Gauges

  7 gauge
• Safety Features

  Hydraulic Interlock System
• Warranty Details

  1 year
• Options

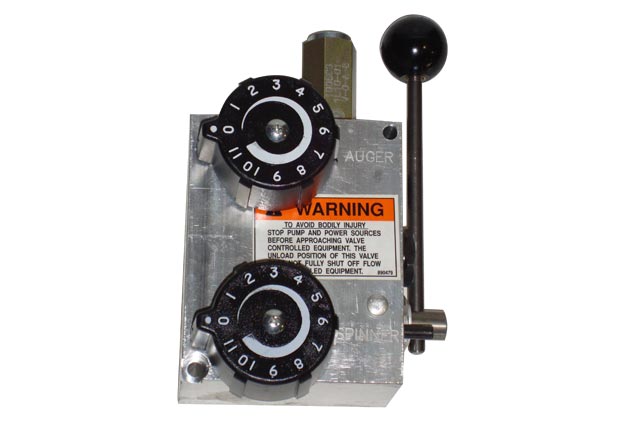

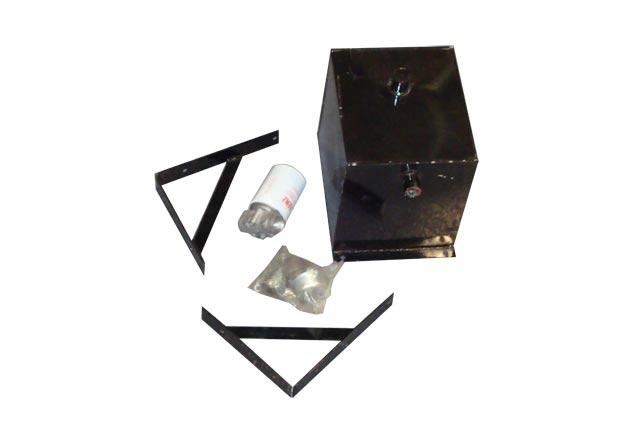

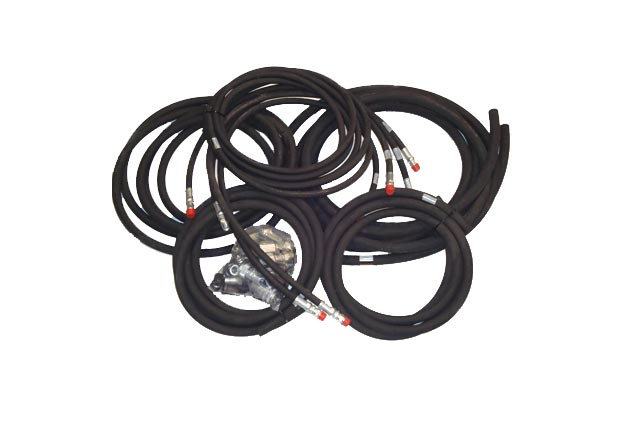

  Dual Flow Control Valve Controller, Central Hydraulic Hose Kit, Central Hydraulic 7 Gallon Tank Kit , Right Hand Spinner Disk
